Linux: Mailpit: Email Testing Tool for Developers

Mailpit is a comprehensive email testing tool designed for developers. It acts as an SMTP server and provides a modern web interface to view and test intercepted emails, along with an API for automated integration testing.

Note

This guide is specifically written for Linux systems. While Mailpit supports multiple platforms (Linux, macOS, Windows), the installation and configuration steps in this document are tailored for Linux environments, particularly Ubuntu/Debian-based distributions.

Overview

What is Mailpit?

Mailpit is a feature-rich email testing solution that helps developers test SMTP functionality and email delivery without sending actual emails to real recipients. It captures all outgoing emails and displays them in a user-friendly web interface.

Key Features

Core Functionality

• Runs entirely from a single static binary or multi-architecture Docker images

• Modern web UI with advanced mail search capabilities

• View emails in multiple formats: formatted HTML, highlighted HTML source, text, headers, raw source, and MIME attachments

• Image thumbnails for attachments

• Optional HTTPS and authentication support

SMTP Server

• Full-featured SMTP server with optional STARTTLS or SSL/TLS

• Authentication support including “accept any” mode

• SMTP relaying (message release) to relay messages via different SMTP servers

• SMTP forwarding to automatically forward messages to predefined email addresses

• Configurable SMTP errors for testing application resilience (Chaos feature)

Advanced Features

• REST API for integration testing

• Real-time web UI updates using WebSockets for new mail

• Optional browser notifications when new mail is received

• Optional POP3 server to download captured messages into email clients

• HTML check to test and score mail client compatibility

• Link check to test message links (HTML and text) and linked images

• Spam check to test message “spamminess” using SpamAssassin

• Create screenshots of HTML messages via the web UI

• Mobile and tablet HTML preview toggle in desktop mode

• Message tagging (manual or automated using filtering and “plus addressing”)

• List-Unsubscribe syntax validation

• Optional webhook for received messages

Performance

• Fast message storing and processing

• Ingest 100-200 emails per second over SMTP (depending on CPU, network speed, and email size)

• Easily handle tens of thousands of emails

• Automatic email pruning (default: keeps the most recent 500 emails)

Installation

Prerequisites

• Linux or macOS operating system

• curl installed

• Sudo privileges

• PHP installed (for PHP integration)

Install Mailpit Binary

Step 1: Download and Install

Install Mailpit directly to /usr/local/bin/mailpit:

sudo bash < <(curl -sL https://raw.githubusercontent.com/axllent/mailpit/develop/install.sh)

This script automatically downloads the latest version and installs it to the system path.

Step 2: Verify Installation

Check that Mailpit is installed correctly:

mailpit version

You should see the version number displayed.

Tip

The installation script automatically detects your system architecture and downloads the appropriate binary.

PHP Configuration

To enable PHP to send emails through Mailpit, you need to configure the sendmail_path in your PHP configuration files.

Configure php.ini Files

Step 1: Locate php.ini Files

Depending on your PHP version and setup, you may need to configure multiple php.ini files:

• CLI: /etc/php/8.1/cli/php.ini

• Apache: /etc/php/8.1/apache2/php.ini

• FPM: /etc/php/8.1/fpm/php.ini

Note

Replace 8.1 with your PHP version (e.g., 7.4, 8.2, 8.3, 8.4).

Step 2: Edit php.ini Files

Open each php.ini file and find the sendmail_path directive:

# For CLI
sudo nano /etc/php/8.1/cli/php.ini

# For Apache
sudo nano /etc/php/8.1/apache2/php.ini

# For PHP-FPM
sudo nano /etc/php/8.1/fpm/php.ini

Step 3: Set sendmail_path

Add or modify the sendmail_path directive:

sendmail_path = /usr/local/bin/mailpit sendmail -t -i

Step 4: Save and Exit

• In nano: Press Ctrl+X, then Y, then Enter

Step 5: Restart Web Server

Restart Apache or PHP-FPM to apply changes:

For Apache:

sudo systemctl restart apache2

For Nginx with PHP-FPM:

sudo systemctl restart php8.1-fpm
sudo systemctl restart nginx

Important

You must restart your web server or PHP-FPM service for the changes to take effect.

Creating Mailpit Service

To run Mailpit as a system service that starts automatically on boot, follow these steps.

Prepare Service Configuration

Step 1: Check Current User

Identify your current username:

whoami

Step 2: Check Primary Group

Identify your user’s primary group:

id -gn

Step 3: Create Data Directory

Create a directory to store Mailpit’s database file:

Important

Why create a data directory?

By default, if you run Mailpit without specifying a database file location, all captured emails are stored in memory only. This means that whenever you restart the Mailpit service or reboot your system, all your test emails will be lost.

Creating a persistent data directory and configuring Mailpit to use a database file ensures that:

• All captured emails are saved to disk

• Emails persist across service restarts

• Emails remain available after system reboots

• You can review historical test emails anytime

Create the directory:

mkdir -p /home/logicrays/mailpit_data

Note

Replace /home/logicrays with your actual home directory path. You can use $HOME/mailpit_data or any preferred location.

Create Mailpit Systemd Service

Important

Why create a systemd service?

Creating a systemd service file for Mailpit provides several important benefits:

• Auto-start on boot: Mailpit automatically starts when your system boots up

• Background operation: Runs Mailpit in the background without needing a terminal session

• Automatic restart: If Mailpit crashes, systemd automatically restarts it

• Easy management: Use standard systemctl commands to start, stop, and monitor Mailpit

• Persistent email storage: When configured with --db-file, ensures emails are saved to disk and preserved across restarts

Without a service file, you would need to manually start Mailpit every time you boot your system, and it would stop when you close your terminal.

Step 1: Create Service File

Create a new systemd service file:

sudo nano /etc/systemd/system/mailpit.service

Step 2: Add Service Configuration

Add the following content to the file:

Listing 66 /etc/systemd/system/mailpit.service

[Unit]
Description=Mailpit email testing service
After=network.target

[Service]
ExecStart=/usr/local/bin/mailpit --db-file=/home/logicrays/mailpit_data/mailpit.db
Restart=always
RestartSec=5

User=logicrays
Group=logicrays

[Install]
WantedBy=multi-user.target

Important

Customize the following values:

• Replace logicrays in User= with your username (from whoami)

• Replace logicrays in Group= with your group (from id -gn)

• Replace /home/logicrays/mailpit_data/ with your chosen data directory path

Step 3: Save and Exit

Save the file and exit the editor.

Service Management

Managing Mailpit Service

Reload Systemd Daemon

After creating or modifying the service file, reload systemd:

sudo systemctl daemon-reload

Enable Mailpit Service

Enable Mailpit to start automatically on boot:

sudo systemctl enable mailpit

Start Mailpit Service:

sudo systemctl start mailpit

Stop Mailpit Service:

sudo systemctl stop mailpit

Restart Mailpit Service:

sudo systemctl restart mailpit

Check Mailpit Status:

sudo systemctl status mailpit

Verify Auto-Start Configuration:

systemctl is-enabled mailpit

This should return enabled if configured correctly.

Service Status Commands

Command	Description
sudo systemctl daemon-reload	Reload systemd manager configuration
sudo systemctl enable mailpit	Enable service to start on boot
sudo systemctl disable mailpit	Disable service from starting on boot
sudo systemctl start mailpit	Start the Mailpit service
sudo systemctl stop mailpit	Stop the Mailpit service
sudo systemctl restart mailpit	Restart the Mailpit service
sudo systemctl status mailpit	View service status and recent logs
systemctl is-enabled mailpit	Check if service is enabled
systemctl is-active mailpit	Check if service is running
journalctl -u mailpit	View full service logs
journalctl -u mailpit -f	Follow (tail) service logs in real-time

Using Mailpit

Accessing the Web Interface

Once Mailpit is running, access the web interface using one of these URLs:

• http://localhost:8025/

• http://127.0.0.1:8025/

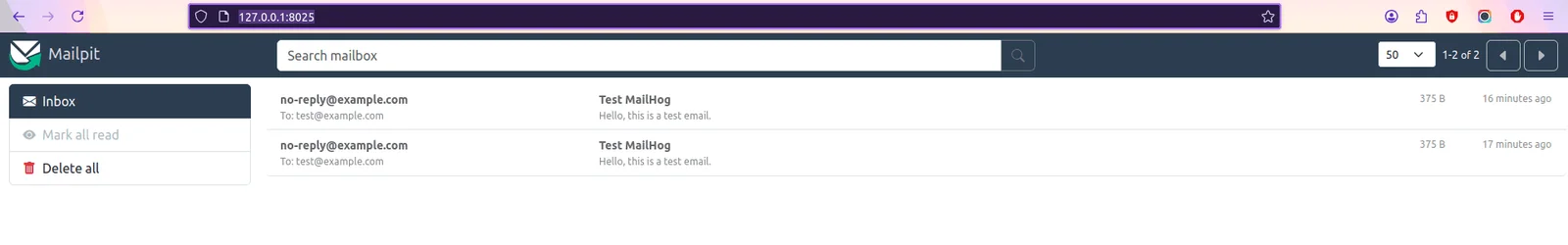

Fig. 36 Mailpit Web Interface

The web interface provides:

• Email inbox view

• Email preview in multiple formats

• Search functionality

• Message details and headers

• Attachment viewer

Testing Email with PHP

Create a Test PHP Script

Create a simple PHP script to test email sending:

Listing 67 test_email.php

<?php
$to = "test@example.com";
$subject = "Test Email from Mailpit";
$message = "This is a test email sent through Mailpit!";
$headers = "From: sender@example.com\r\n";
$headers .= "Reply-To: sender@example.com\r\n";
$headers .= "Content-Type: text/html; charset=UTF-8\r\n";

if (mail($to, $subject, $message, $headers)) {
    echo "Email sent successfully!";
} else {
    echo "Email sending failed!";
}
?>

Run the Script:

php test_email.php

View the Email

Open http://localhost:8025/ in your browser to see the captured email.

Testing with Magento 2

Important

If you are using any SMTP extension or plugin in Magento 2 (such as Mageplaza SMTP, Magepal SMTP, or similar), you must disable it first. These plugins override the default PHP mail configuration and will prevent emails from being captured by Mailpit. Disable the SMTP module via command line or admin panel before testing.

For Magento 2, emails are automatically sent through Mailpit once the PHP configuration is set up correctly:

# Trigger a test email
cd /path/to/magento
php bin/magento setup:config:set --enable-debug-logging=true

# Or test via admin panel
# Stores > Configuration > General > Store Email Addresses
# Send a test order confirmation email

Viewing Captured Emails

The Mailpit web interface allows you to:

1. Browse all captured emails in the inbox view

2. Search emails using advanced search filters

3. View email content in multiple formats (HTML, text, source)

4. Download attachments from emails

5. Test links in the email

6. Check spam score if SpamAssassin is configured

7. Take screenshots of HTML emails

8. Tag messages for organization

Updating Mailpit

Keeping Mailpit Up to Date

Step 1: Check Current Version:

mailpit version

Step 2: Download Latest Version

Run the installation script again to update:

sudo bash < <(curl -sL https://raw.githubusercontent.com/axllent/mailpit/develop/install.sh)

Step 3: Restart Service:

sudo systemctl restart mailpit

Step 4: Verify New Version:

mailpit version

Handling Update Errors

If you encounter a permission denied error during update:

cp: cannot create regular file '/usr/local/bin/mailpit': Permission denied

Solution 1: Remove Existing Binary:

sudo rm /usr/local/bin/mailpit

Then run the installation script again:

sudo bash < <(curl -sL https://raw.githubusercontent.com/axllent/mailpit/develop/install.sh)

Solution 2: Rename Existing Binary:

sudo mv /usr/local/bin/mailpit /usr/local/bin/mailpit.old

Then run the installation script:

sudo bash < <(curl -sL https://raw.githubusercontent.com/axllent/mailpit/develop/install.sh)

Step 3: Restart Service:

sudo systemctl restart mailpit

Troubleshooting

Common Issues

Mailpit Service Not Starting

Check the service status and logs:

sudo systemctl status mailpit
journalctl -u mailpit -n 50

Port Already in Use

If port 8025 or 1025 is already in use, modify the service file to use different ports:

ExecStart=/usr/local/bin/mailpit --smtp=2025 --listen=9025

Emails Not Being Captured

1. Verify PHP configuration:

   php -i | grep sendmail_path


2. Ensure it shows:

   sendmail_path => /usr/local/bin/mailpit sendmail -t -i


3. Restart your web server:

   sudo systemctl restart apache2
   # or
   sudo systemctl restart php8.1-fpm


Permission Issues

Ensure the data directory has correct permissions:

chmod 755 /home/logicrays/mailpit_data
chown logicrays:logicrays /home/logicrays/mailpit_data

Web Interface Not Accessible

1. Check if Mailpit is running:

   systemctl is-active mailpit


2. Check firewall rules (if applicable):

   sudo ufw allow 8025/tcp


3. Verify listening ports:

   ss -tulpn | grep mailpit


Best Practices

Development Environment

1. Use Mailpit Only in Development: Never use Mailpit in production environments

2. Regular Updates: Keep Mailpit updated to get the latest features and security fixes

3. Secure Access: If exposing Mailpit over a network, enable authentication

4. Resource Limits: Configure automatic email pruning to manage disk space

Testing Workflow

1. Test Email Templates: Use Mailpit to verify email templates render correctly

2. Check Responsive Design: Use the mobile/tablet preview feature

3. Validate Links: Use the link checker to ensure all links work

4. Spam Testing: If using SpamAssassin, check spam scores before sending to real users

5. Screenshot Emails: Capture screenshots for documentation or review

Integration Testing

1. Use the API: Leverage Mailpit’s REST API for automated testing

2. Webhook Integration: Configure webhooks for CI/CD pipelines

3. Search Filters: Use advanced search filters to find specific test emails

Security Considerations

1. Network Access: Limit access to localhost in development

2. Authentication: Enable UI authentication if accessible over network

3. HTTPS: Use HTTPS for production-like testing environments

4. Clean Up: Regularly clear old test emails

Warning

Mailpit stores emails in plain text. Never use it with sensitive production data.

Search Filters

Mailpit supports advanced search filters to find specific emails quickly.

Common Search Filters

Filter	Description
from:user@example.com	Emails from specific sender
to:user@example.com	Emails to specific recipient
subject:test	Emails with “test” in subject
has:attachment	Emails with attachments
is:unread	Unread emails
is:read	Read emails
tag:important	Emails tagged as “important”

Example Searches:

from:noreply@example.com
to:customer@test.com subject:order
has:attachment from:admin@shop.com

For more search filter options, visit: https://mailpit.axllent.org/docs/usage/search-filters/

Resources

Official Documentation

• Official Website: https://mailpit.axllent.org/

• GitHub Repository: https://github.com/axllent/mailpit

• Search Filters Guide: https://mailpit.axllent.org/docs/usage/search-filters/

• API Documentation: https://mailpit.axllent.org/docs/api-v1/

Related Guides

• Linux: Commands Reference Guide - General Linux command reference

• LAMP Stack Installation Guide - LAMP stack setup guide

• Linux: Package Management Guide - Linux package management

Quick Reference

Installation:

# Install Mailpit
sudo bash < <(curl -sL https://raw.githubusercontent.com/axllent/mailpit/develop/install.sh)

# Configure PHP
echo "sendmail_path = /usr/local/bin/mailpit sendmail -t -i" | sudo tee -a /etc/php/8.1/apache2/php.ini

# Restart Apache
sudo systemctl restart apache2

Service Management:

sudo systemctl start mailpit      # Start service
sudo systemctl stop mailpit       # Stop service
sudo systemctl restart mailpit    # Restart service
sudo systemctl status mailpit     # Check status
sudo systemctl enable mailpit     # Enable on boot

Common URLs:

http://localhost:8025/            # Web interface
smtp://localhost:1025             # SMTP server

Useful Commands:

mailpit version                   # Check version
journalctl -u mailpit -f          # View logs
systemctl is-enabled mailpit      # Check if enabled

Update Mailpit:

sudo bash < <(curl -sL https://raw.githubusercontent.com/axllent/mailpit/develop/install.sh)
sudo systemctl restart mailpit

Conclusion

Mailpit is an essential tool for modern web development, providing a safe and efficient way to test email functionality without sending real emails. Its rich feature set, including the web interface, API, and advanced testing capabilities, makes it invaluable for developers working with email-enabled applications.

Key takeaways:

• Easy to install and configure

• Works seamlessly with PHP and other languages

• Provides comprehensive email testing features

• Runs as a system service for convenience

• Includes powerful search and filtering capabilities

• Offers an API for automated testing

By following this guide, you should have Mailpit up and running on your development machine, ready to capture and test all your application’s emails.
